Product Lineup

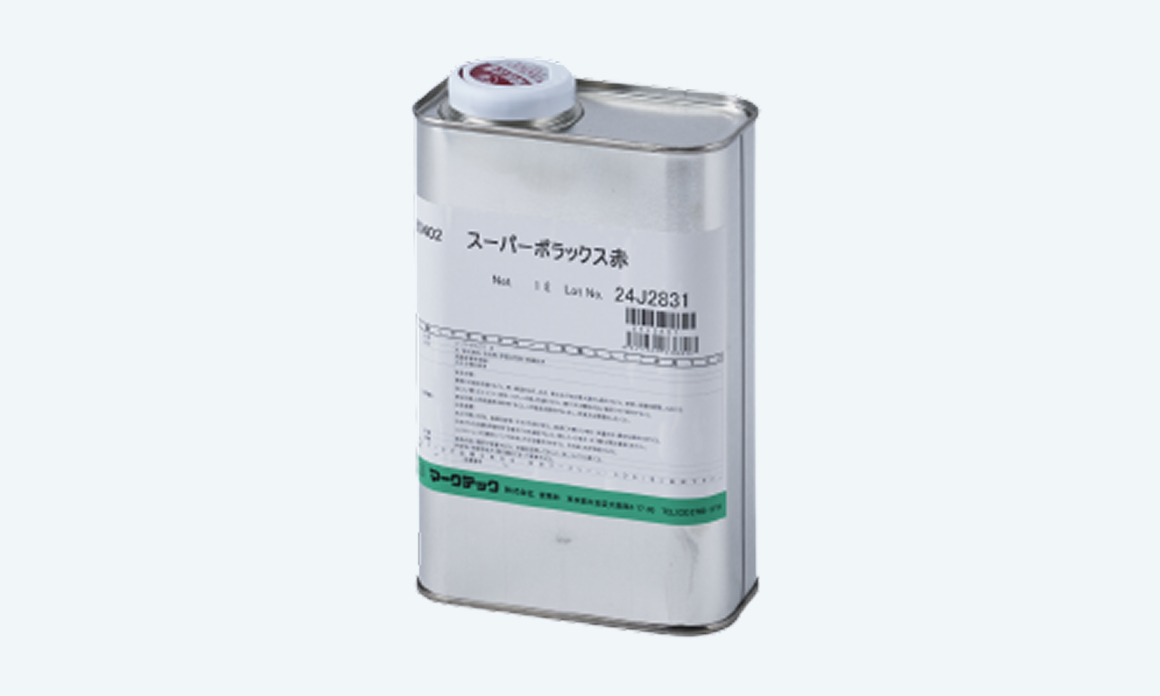

Super Polx
- Concrete flaw detection agent
Product Description
When there is a flaw opened on the surface of a concrete building, this can develop into a large crack when it becomes pressurized.By using Super Polx for inspection, it is possible to find dangerous flaws and prevent accidents.
Features
- Most suitable for inspection of the dried concrete (porous) surface
- Flaw width: it is possible to detect a flaw opening of about 0.05 to 0.3 mm on the surface
- It is possible to confirm flaws under the visible light and also possible to confirm finer flaws by using black lights
- Not applicable to the Ordinance on Prevention of Organic Solvent Poisoning, the PRTR System, or the Fire Defense Law
Main applications
- Concrete flaw detection material
How to use
STEP
Prepare the inspection liquid by diluting Super Polx with water in the following amount.
- In the case of observing under the visible light:pour 100 ml of Super Polx into 1 ℓ of water (dilute to about 9%)
- In the case of observing in the darkroom, etc. by using the ultraviolet flaw detection light: pour 50 ml of Super Polx into 1 ℓ of water (dilute to about 5%)
STEP
Stir the inspection liquid well before the inspection.
The following methods are most suitable for application of inspection liquid to the inspecting surface.
- In the case where the inspecting surface is a vertical plane or a inclined plane: blow it by a spray gun, etc., so that it flows quietly from top to bottom
- In the case where the inspection surface is a flat plane: pour it with the watering pot, etc.
STEP
As the inspecting surface becomes dry, the particles gather on the flaws and the result of the inspection can be confirmed.
Fine flaws can be confirmed by using the ultraviolet flaw detection light (black light).
* The inspection for the concrete surface of about 5 m 2 is possible with 1 ℓ of prepared inspection liquid
Precautions
・Please conduct the inspection in the condition where the concrete is dried.In the condition where humidity is contained, the inspection cannot be done.
・Do not apply the inspection liquid twice.
・After the observation is completed, rinse the inspection liquid with water.
Product information for Super Polx
can also be found in the catalog.

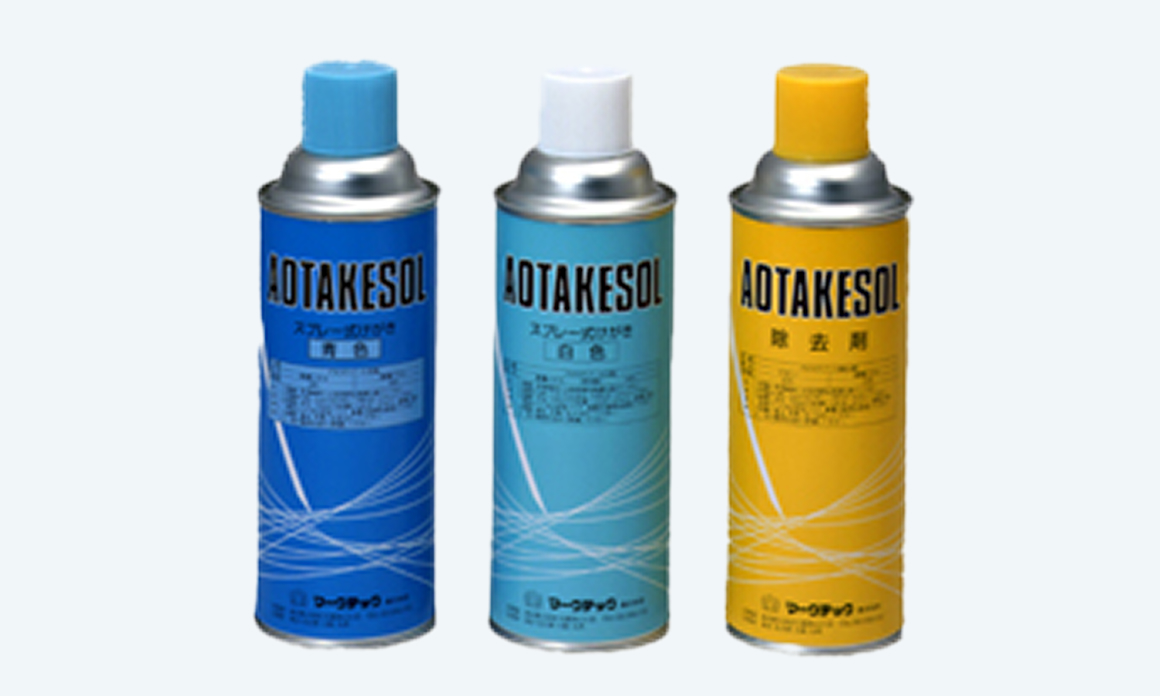

Aotakesol
- Scribe Agent
Product Description
Aotakesol can be used to mark precision machinery with a single touch, and can also be used as a contrast paint (white) during magnetic particle testing.
Features
- It dries quickly and is efficient, with a fast finish.
- The special manufacturing process makes the marking lines clear and will not disappear from oil or during processing.
- The coating is uniform and no more than 0.01 mm thick, making it suitable for precision design.
- It has excellent adhesion and can be used on all metals, glass, etc.
- The sealed container makes it very economical, eliminating losses from evaporation and leakage.
- There are three types: blue, white, and remover.
use
- Scribing work for precision machinery
How to use
STEP
Shake well up and down to check if the ball inside is rotating.
STEP
Spray about 30 cm away from the target object.
STEP
It dries in about 3 minutes.
Capacity
- Aerosol 450 type can
Super Marker Pen Red II (low halogen/low sulfur)
Features
- Most suitable for marking of nuclear power plant equipment and related parts
- Indelible with water
- Extremely low amount of element content such as halogen (sulfur: less than 50 ppm, fluorine/chlorine: less than 200 ppm)
