Test method
Fluorescent penetrant testing is a method to find fine flaws opened on the surface of the test specimen by impregnating a shimmery liquid with into them to enlarge to the flaw.In fluorescent penetrant testing in the aerospace industry, the inspection needs to be conducted upon selecting flaw detection materials and devices according to standards such as ASTM and AMS.
* For those who are considering the fluorescent penetrant testing other than the aircraft industry, please see here. (Link to the general is placed)
View test methods for Fluorescent penetrant testing (general)
Materials covered in the testing
- Metallic and non-metallic material
Products used
- Flaw detection material
- Black light
Features of testing
feature
Use of flaw detection materials, devices, and equipment conforming/according to the standards related to the aircraft.
feature
Regularly check the performance of flaw detection materials, equipment, and devices to be used.
(Fatigue test of flaw detection materials, regular inspection of flaw detection equipment, calibration of black lights and measuring instruments, etc.)
feature
Inspection by a qualified technician is required.

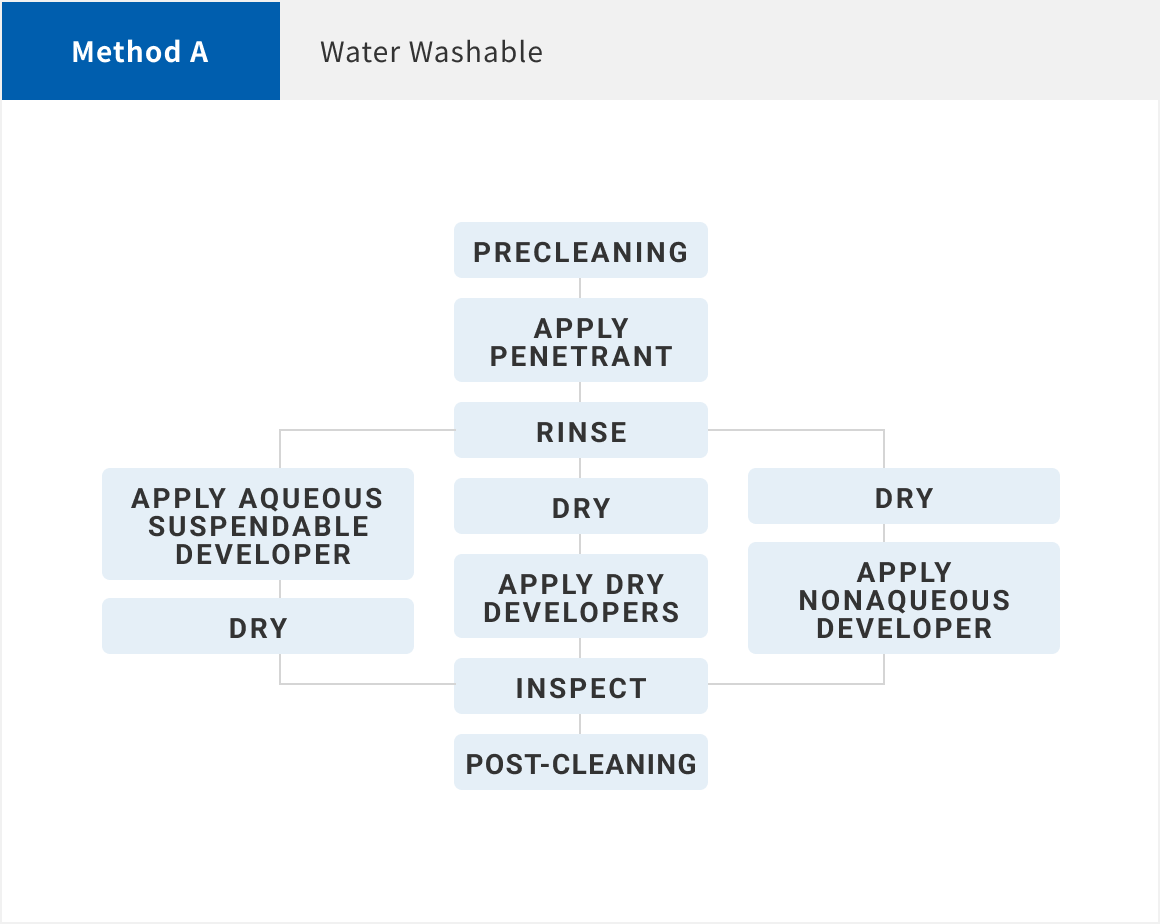

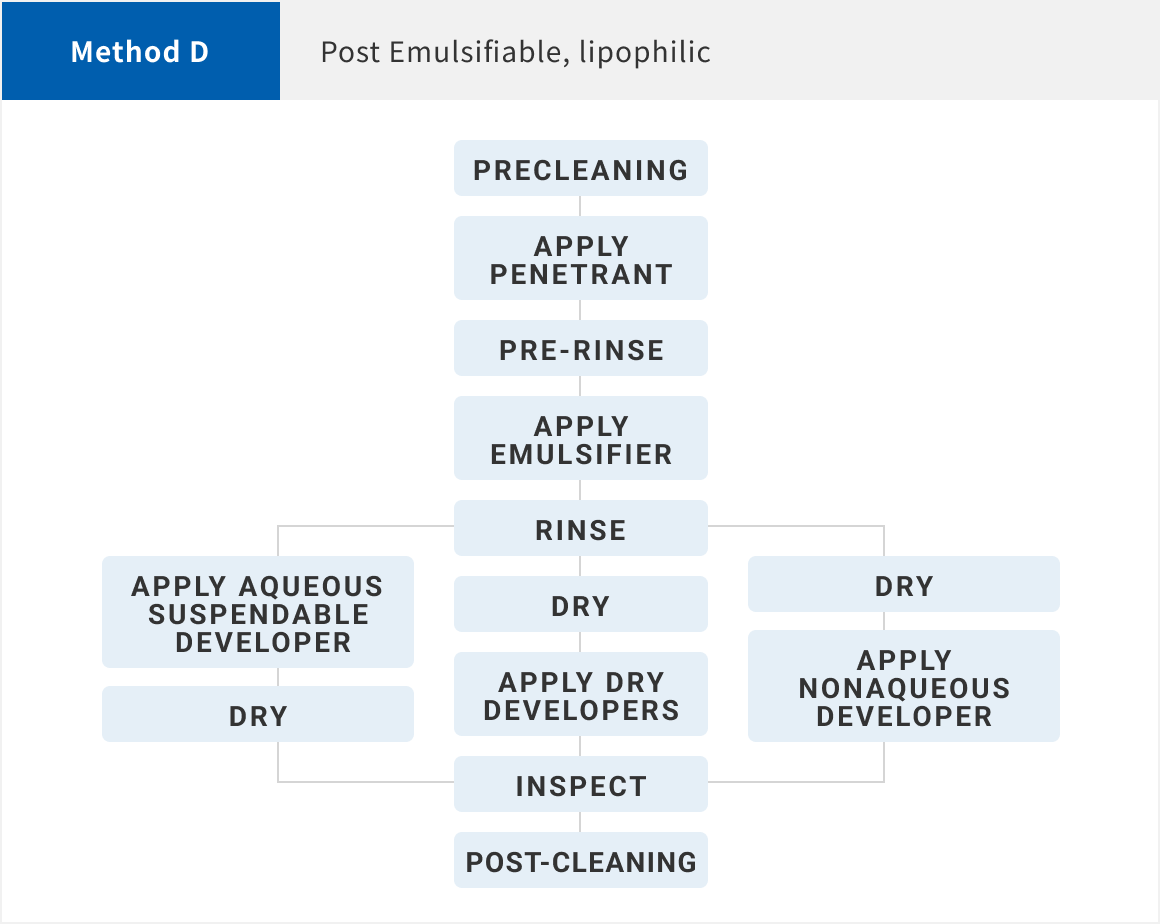

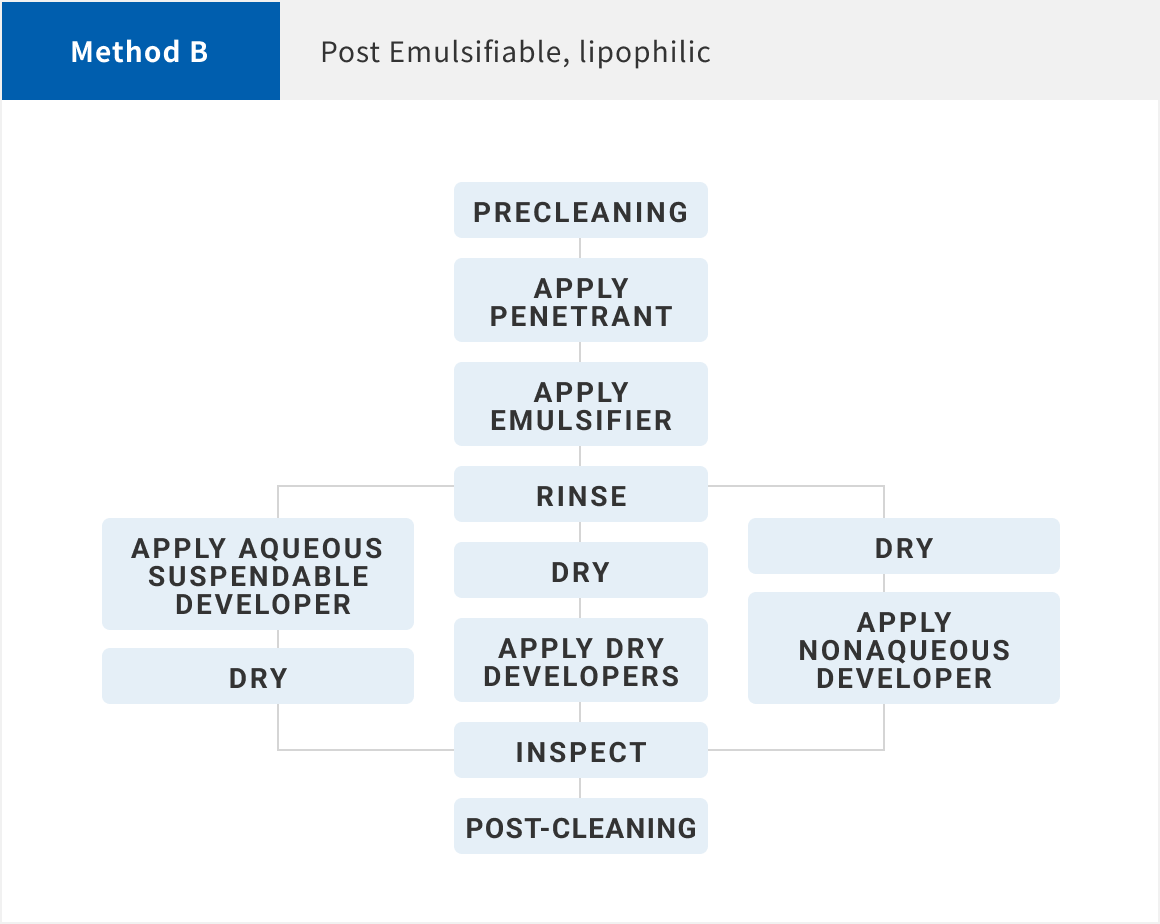

Flow of flaw detection
Fluorescent penetrant testing in the aircraft industry is performed by one of the following procedures
Flaw detection material lineup
| Category | Product Name | Type | Method | Sensitivity Level | Features |
|---|---|---|---|---|---|
| Penetrant | P121 | Ⅰ | ・”A” Water Washable ・”C” Solvent removable | 2 | Water washable or Solvent removable fluorescent penetrant. |
| P130 | 3 | ||||
| P220 | Ⅰ | ・”B” Post emulsifiable, lipophilic ・”C” Solvent removable ・”D” Post emulsifiable, hydrophilic | 2 | Post Emulsifiable or Solvent removable fluorescent penetrant. | |
| P230 | 3 | ||||
| P240 | 4 | ||||
| Emulsifier | E400 | “B” emulsifiable, lipophilic | Emulsifier used in combination with P220, P230, P240 | ||
| R500 | “D” Post emulsifiable, hydrophilic (Diluted in water at a rate of 30%) | ||||
| Developer | D700 | Form a | Dry developers | ||
| D701 | Form d | Nonaqueous developer (Aerosol type) | |||
| Remover | S600 | Class(2), Nonhalogenated | Remover for Method “C” | ||
In-Use testing
Penetrant used for testing can become contaminated with foreign material or moisture,resulting in it becoming degraded, such that highly reliable test results cannot be obtained. We receive the penetrant you are currently using to perform testing based on ASTM, AMS, and similar standards. Test results are provided in the form of a In-Use testing results report.
Inspection item : Water Content、Fluorescent Brightness、Sensitivity、Penetrant Removability
* Please contact our sales personnel if you want to perform testing other than the test items to the left.
Details of product
- Remover
- Emulsifier
- Developer
- Fluorescent penetrant
Super Glo (AMS 2644 certified product)
Super-Glo is standard fluorescent penetrant flaw detection material. The rich and varied lineup provides penetrants that are optimal for a wide range of applications and purposes.
Related products
Fluorescent penetrant equipment
Black light・UV intensity tester
MARKTEC’s black lights (ultraviolet flaw detection lights) are designed and fabricated under the most suitable conditions for flaw detection testings in which ultraviolet rays (UV-A) including 365 nm are irradiated.
Test pieces for magnetic particle testing (link destination)
They are used for checking the strength and direction of the magnetic field on the testing surface, performance inspection of flaw detection equipment and inspection liquid, checking the effective range of flaw detection and conditions of flaw detection, etc.
