Product Description

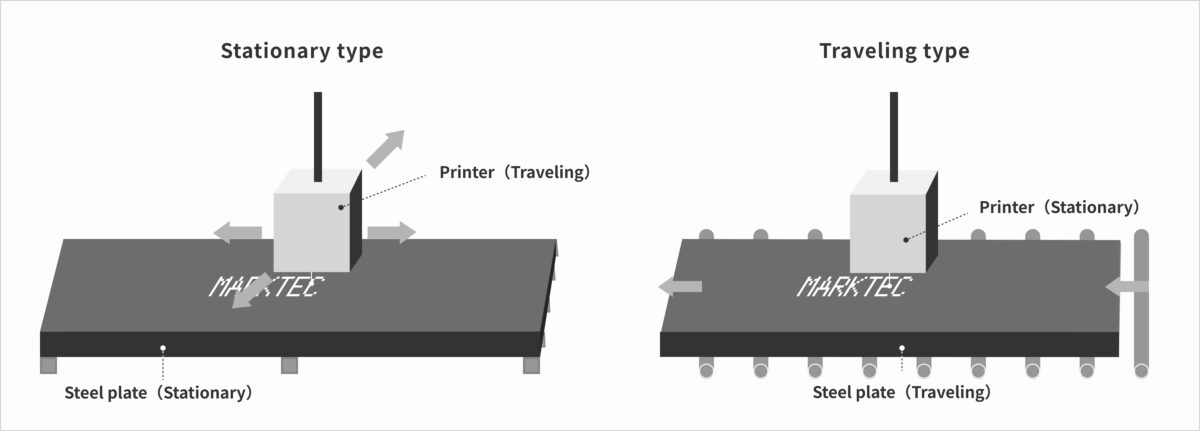

Custom-made printing devices for steel plates include a “stationary type” where the printer moves over a stationary steel plate to print, and a “traveling type” where printing is performed while the steel plate is traveling at high speed. In either case, MARKTEC can propose custom‐made printing devices specialized for steel plate manufacturers.

Features

Features of the Stationary type

feature

Extremely precise marking can be done on stationary plate

feature

34-dot-matrix dense special marks and fonts can be registered max. 999 kinds

Features of the Traveling type

feature

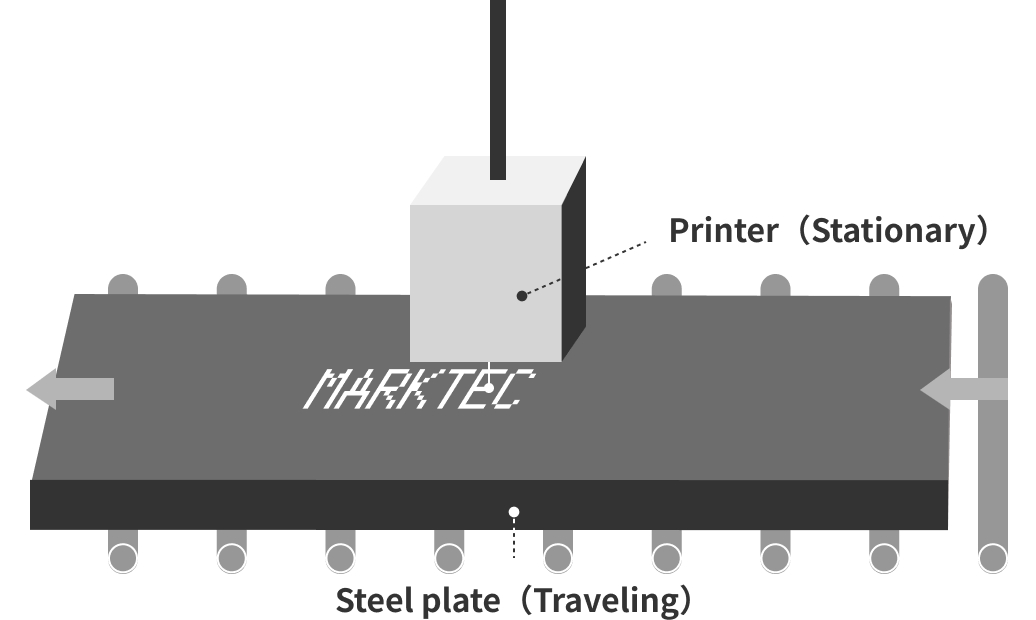

Fast marking cycle/High productivity because of the marking during the plate is running

feature

36-dot-matrix dense special marks and fonts can be registered max. 999 kinds

Specifications

	Stationary type	Traveling type
Device image
Location	Upper part of the roller table of the thick plate finishing line	Upper part of the roller table of the thick plate finishing line
Target product	Heavy Plate	Heavy Plate
Plate Condition	Dry, free of water, oil and mill scale Max. 300 ℃	Dry, free of water, oil and mill scale Temperature : Max. 300 degrees C Steel plate flatness: within -5 to 50 mm Bend at the tip of steel plate: Up to ±100 mm
Marking Specification	Marking Type : Paint dot spray type Dot Configuration : 34-dot-matrix Dot Diameter, Pitch : 5 mm Kind of Character : Numerals, Alphabets, Symbols, Special fonts and marks	Marking Type : Paint dot spray type Dot configuration: 36 dots per marking head × 4 heads × 2 sets Dot Diameter, Pitch : 5 mm Kind of Character : Numerals, Alphabets, Symbols, Special fonts and marks
Specifications	Marking Machine Marking Head (34 dots), Marking Head Case, Nozzle Cleaning Device and others Pump Unit Paint Pump, Remover Pump each 1 set Marking Control Panel Print Controller (PC), Sequencer (PLC) Marking driver panel, servo driver panel Frame and Drive Unit Bridge type frame Drive unit for Marking Machine: X-axis Transverse movement Y-axis Movement of plate longitudinal direction Z-axis Upward and Downward movement W-axis Rotating movement	Marking Machine Marking Head (36-dot x 4), Marking Head Case, Nozzle Cleaning Device and others Pump Unit Paint Unit、Remover Unit Marking Control Panel Panel Print Controller (PC), Sequencer (PLC) Marking driver panel, servo driver panel Main Operation Panel Desk type Frame and Drive Unit Bridge type frame Drive unit for Marking Machine: X-axis Transverse movement Z-axis Upward and Downward movement

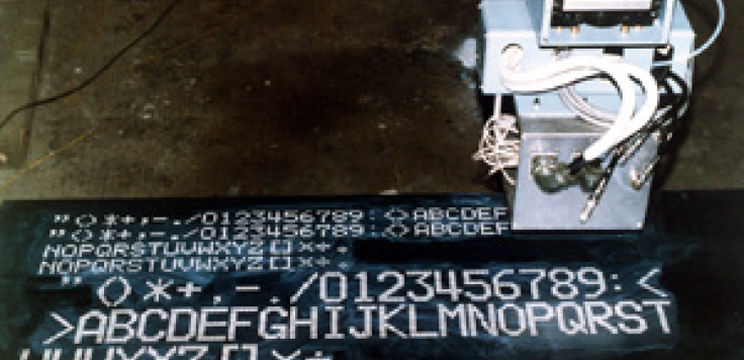

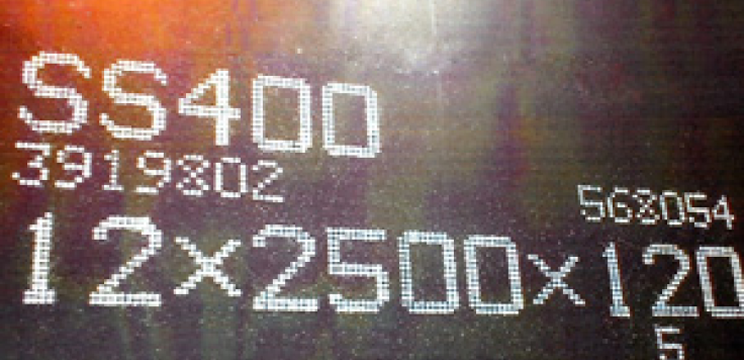

Marking examples

Related products

Paint

Tecmarker and Eco Color are the specialized paints for our printing and marking devices. We have a wide range of colors to suit a variety of applications.

View Details
