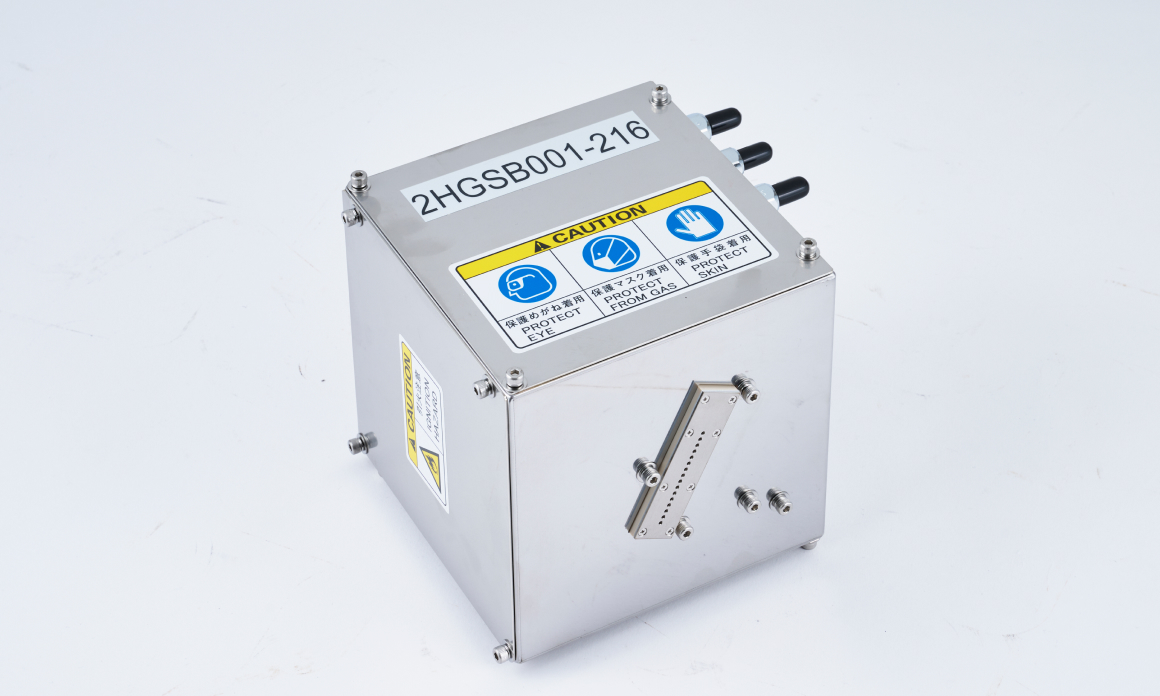

Product Description
PJ-1B the new Paint Marking Machine of MARKTEC offers a high quality marking at reasonable price. Optimum type can be selected from 3-types (0,1 and 2) of PJ-1B corresponding to the character size requirement.

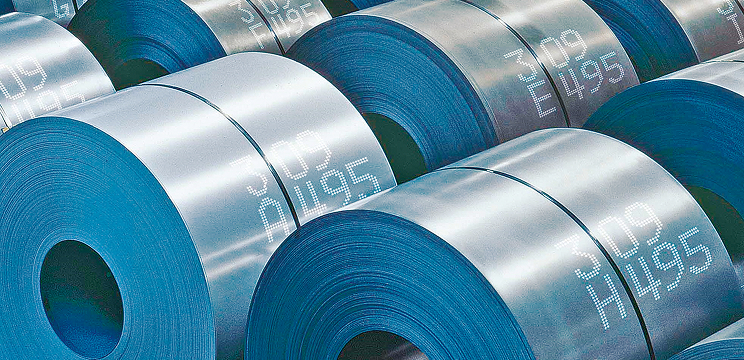

Marking examples
Printing is possible for both
- Flat surface (plate)
- Curved surface (pipe).
Features
feature
A device which can mark characters and symbols formed with up to 16 dots.
feature
Online marking (automatic marking) is possible by communicating with the host system
feature
Choose the suitable printer from Type 0, Type 1, and Type 2, according to the size of characters required.
feature
MARKTEC can offer a choice of character size (marking size) and prepare special fonts according to the customer requirements.
Selecting character size
Marking characters in desired size is possible by selecting from three types of printers with different nozzle angles.
Type 0 (90°)
Maximum character size(height x width): 48 x 54 mm
Type 1 (45°)
Maximum character size (height x width): 34 x 38 mm
Type 2 (26°)
Maximum character size (height x width): 21 x 24 mm
Two-dimensional Barcode Marking Function (Data Matrix Code)
The 2D barcode printing function is implemented as standard and can be used for the following applications.
- Process of use (example)1
workflow management

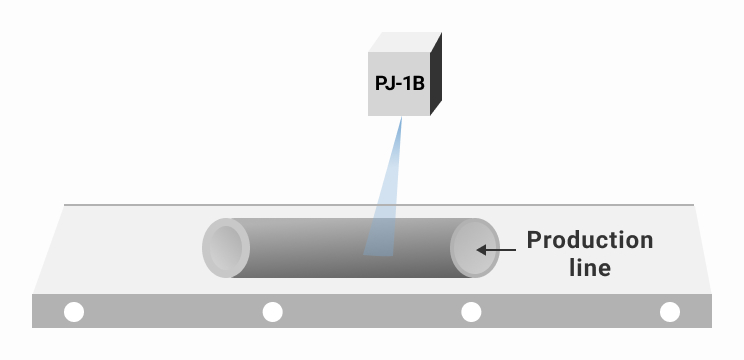

Marking codes on the products coming out from the production line
- Process of use (example)2
stock management

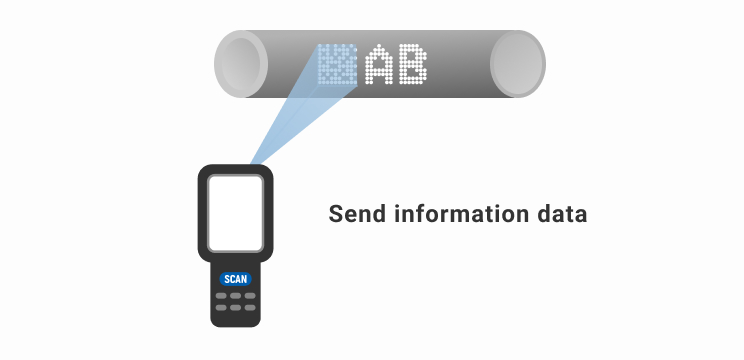

Read codes with the reading device
- Process of use (example)3
traceability
Manage on PC
Configuration and specifications of PJ-1B

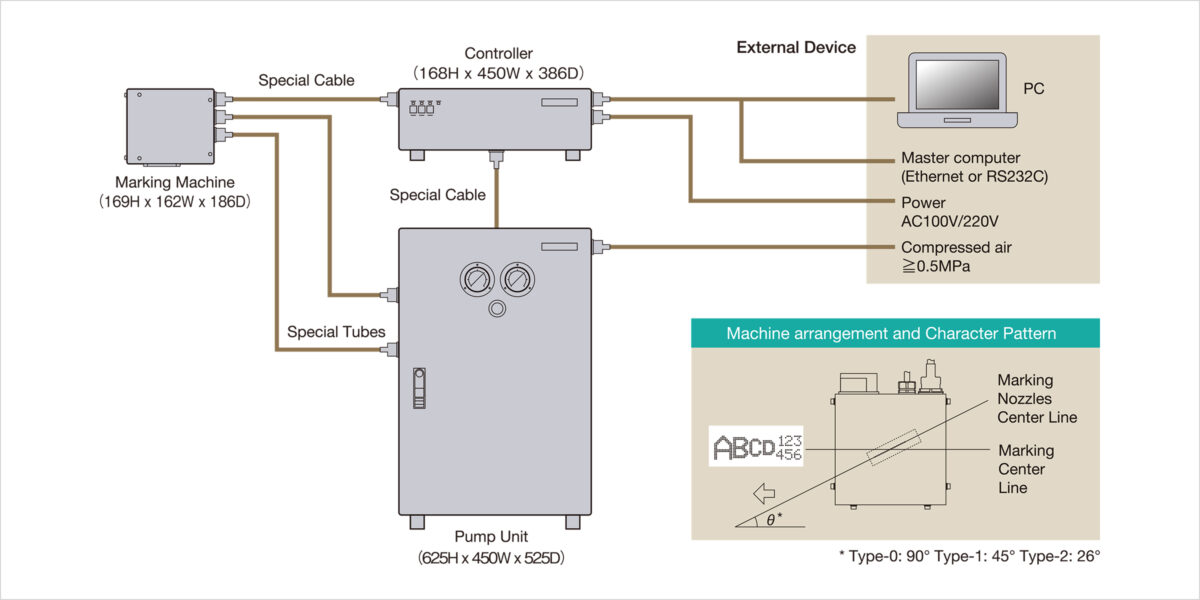

Connection and placement of the device
Product specifications
| Model | PJ-1B-0 | PJ-1B-1 | PJ-1B-2 |
|---|---|---|---|
| Kind of characters | Numbers: 10 kinds／Alphabet: 26 kinds／Symbol: 27 kinds／Special character: 100 kinds(Registerable) | ||
| Character size | Standard character (Height × width mm) | ||
| 21×23 (minimum) | 15×17(minimum) | 9×11（(minimum) | |
| 48×54(maximum) | 34×38(maximum) | 21×24(maximum) | |
| Marking speed (standard character) | 207mpm | 145mpm | 120mpm |
| Number of characters that can be marked (paint: 4L) | Approximately 250,000 characters (in the case of extra large marking) | Approximately 350,000 characters (in the case of extra large marking) | Approximately 500,000 characters (in the case of extra large marking) |
| Marking head specification | Marking head specification | ||
| Marking distance | Less than 20mm | Less than 20mm | Less than 10mm |
| Communication I/F | RS232C serial communications (19.2 Kbps or less) | ||
| Power source | AC100V（50/60Hz）、5A ・AC220V（50/60Hz）、2.3A | ||
| Air source | More than 0.5MPa | ||
| Service temperature | Ambient temperature (10 to 40℃), without condensation | ||
Related products
Paint
Tecmarker and Eco Color are the specialized paints for our printing and marking devices. We have a wide range of colors to suit a variety of applications.
Product information for Print Jet Printer
PJ-1B can also be found in the catalog.
contact
Inquiries about “製品“
For orders or inquiries about “製品“products,
please feel free to contact us via the email form or by phone.
Monday to Friday 8:45-17:30
Other Printing and Marking Products
- Custom‐made Type

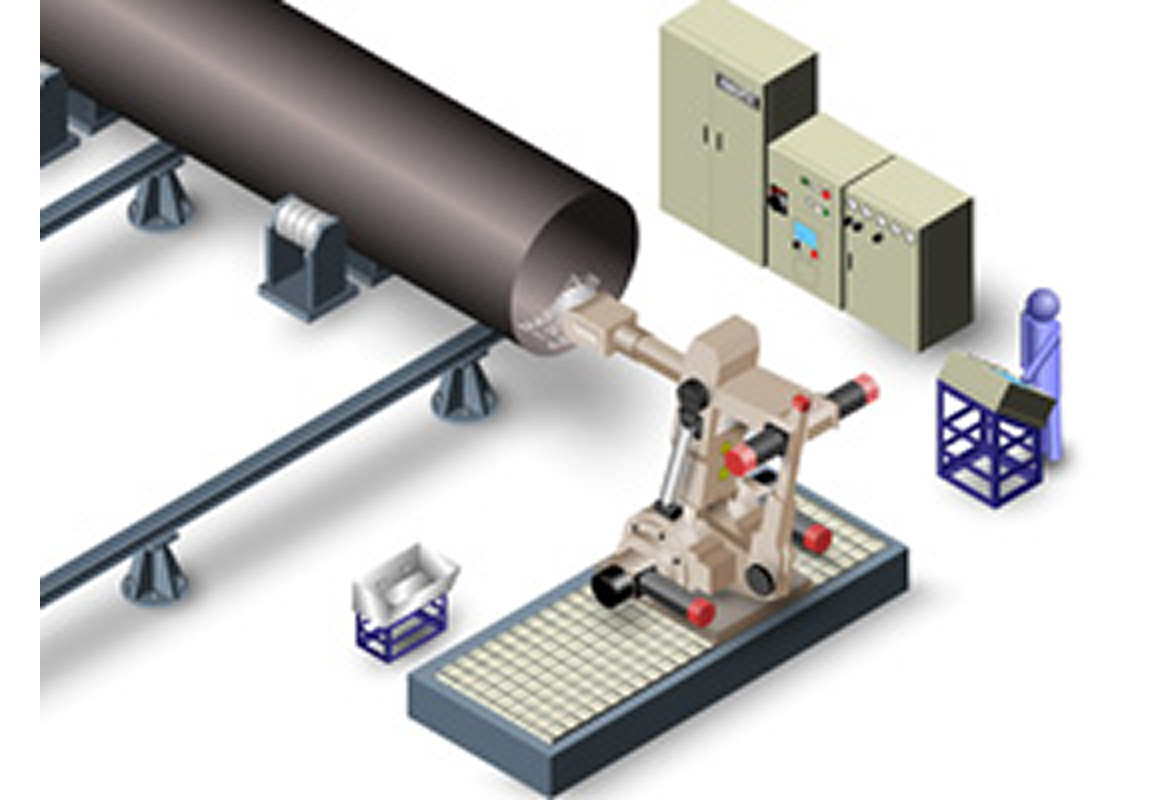

Custom‐made printing device for steel pipe
MARKTEC can propose custom‐made printing devices specialized for steel pipe manufacturers.
- Custom‐made Type

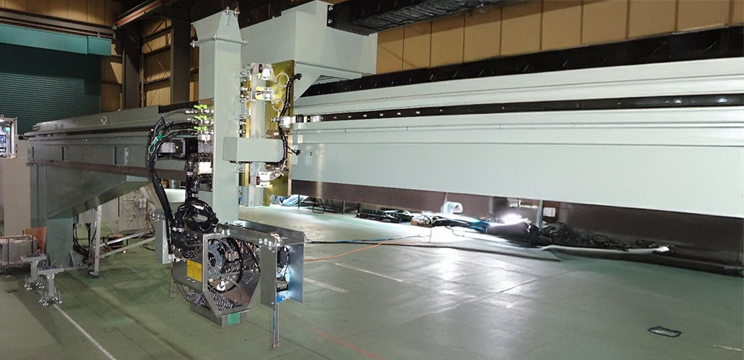

Custom‐made printing device for steel plate

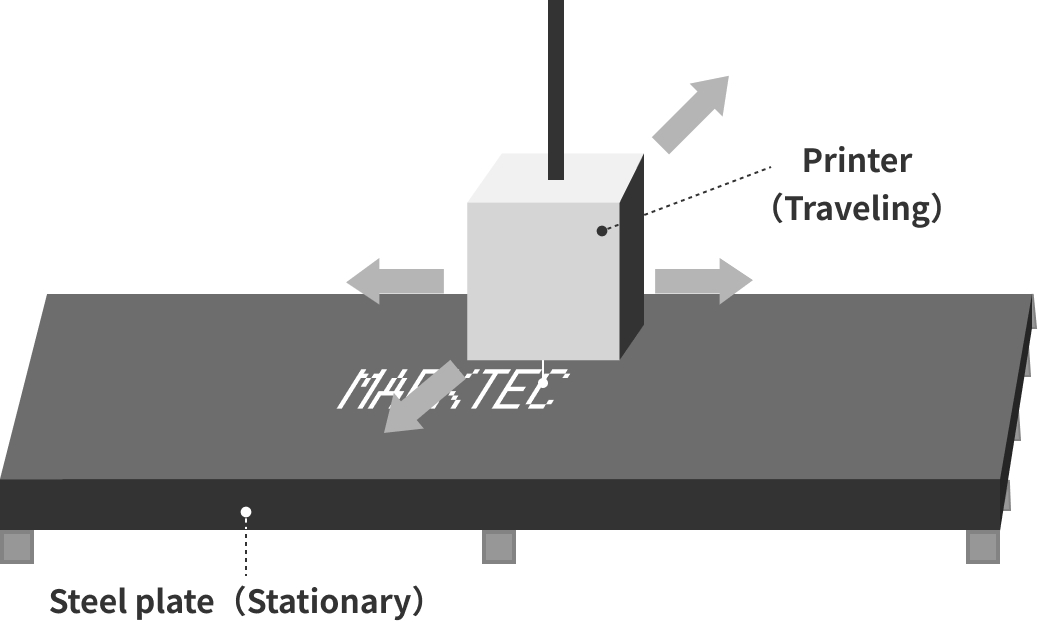

There are two types of custom-made printing devices for steel plates: “stationary” and “traveling”. In either case, MARKTEC can propose custom‐made printing devices specialized for steel plate manufacturers.
